Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-12864COG-14
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Display Type: |
128*64 Dots |
Polarizer: |
Transmissive |
Display Screen: |
Negative |
Control IC: |
ST7565R |
Drive Mode: |
1/64 Duty , 1/9 Bias , VAP 10.1V |
Viewing Direction: |
6 O'clock |
LCD Operating Voltage: |
3.3v (3V-5V.>2.8v Is Ok) |
Connection: |
COG / FPC |
Display Type: |
128*64 Dots |
Polarizer: |
Transmissive |
Display Screen: |
Negative |
Control IC: |
ST7565R |
Drive Mode: |
1/64 Duty , 1/9 Bias , VAP 10.1V |
Viewing Direction: |
6 O'clock |
LCD Operating Voltage: |
3.3v (3V-5V.>2.8v Is Ok) |
Connection: |
COG / FPC |

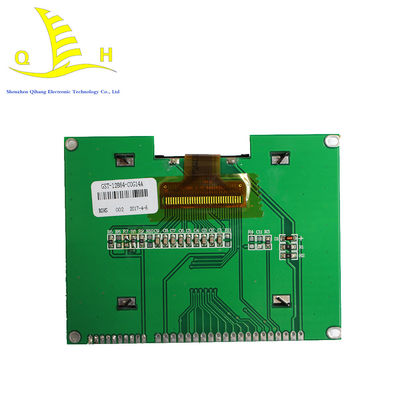

COB COG Driving 70℃ Monochrome LCD Display LCD Module
COB COG Driving 70℃ Monochrome LCD Display LCD Module Detail:
|
Place of Origin: |
Guangdong, China |
|
Display Content |
128x64 DOTS |
|
Operating Voltage |
3.3v (3V-5V.>2.8v Is Ok) |
|
Driving Method |
according to your request |
|
Viewing Angle |
6 O'clock or 12 O'clock |
|
Polarizer |
Transmissive , Negative |
|
LCD Type |
STN |
|
View Area |
72.05 (H) x 39.33 (V) mm |
|
Outside Dimensions |
93 (H)x 70 (V)x 11.4 (D)mm |
|
Voltage Driving |
Dynamic or static |
|
Connector |
Pin |
|
Operating Temperature |
-20℃-70℃ |
|
Storage Temperature |
-30℃-80℃ |
|
Package |
COG + FPC |
|
OEM/ODM |
Accecpted |
|
System Design |
Lcd module related system software and hardware design accepted |
|
Warranty |
12 moths free, payed warranty lifttime |
|
Backlight |
White LED |
|
LCD Module Type |
Meter Module |
|
Sample Lead Time |
3-7 working days |
|
Customize Lead Time |
15-30 working days |
|
Packaging |
One module in a bag, bags in small carton foam protecting, small carton in big carton |
|
Cetification |
ISO,SGS |
Shipping Warranty
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.
Product
We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.
1.We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2.Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters
3.Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.
Drawing
________________________________________________________________________________________
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent , we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 3-5 work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: EXW.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 3-5 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them , no matter where they come from.
